High density interconnects (HDI) PCB
产品详情


ADVANCED HDI PCB FABRICATION & ASSEMBLY

HDI PCBs are the circuit boards with higher wire density than standard criterias. HDI PCBs appear thinner lines and spaces, smaller vias and higher connection pad density, which are commonly used for high spacing and precision required devices and system cards.

FEATURES OF OUR HDI PCBs

  • Blind and/or buried vias

  • Min. Line Width/Space: 0.05/0.05mm

  • Via-in-pad

  • Through vias from surface to surface

  • 20 µm circuit geometries

  • 30 µm dielectric layers

  • 50 µm laser vias

  • 125 µm bump pitch processing

  • Surface Finish: ENIG/OSP/HASL/Au Plating (soft/hard)/ Immersion Ag/ Immersion Tin/ Bright Tin Plating/Ag Plating/Carbon Ink

BENEFITS OF HDI PCBs MANUFACTURING WITH INNO

  • Shorter PCB manufacturing time-to-market and enhanced machine performance for Flip Chip, BGA, MCM, SIP technologies.

  • Ultra thin cores, fine line geometries and alternative via methods for improved thermal transfer for thermal PCBs.

  • In compliance with 20um circuit geometries, 30um dielectric layers, 50um laser vias and 125um bump pitch processing.

  • Allows reducing the lead times by combining the manufacturing capabilities with a profound understanding of high speed digital and high frequency RF package requirements.

  • Increases the area for PCB designer to place electronical components and also enhances faster signal transmission and reduced signal loss.

  • Our high HDI PCB boards have the technology-driving capabilities to bring applications in a large number of industries including but not limited to semiconductor test equipment, military weapons, medical, and aerospace.

    FeatureCapability
    Number of Layers4-30 layer
    Quality GradeIPC 6012 Class 2,IPC 6012 Class 3
    MaterialTg 140°C FR4,Tg 150°C FR4,Tg 170°C FR4 ,Special material
    Thickness0.4-6.0mm
    Min Track/Spacing

    Inner layer: Part 2 / 2mil, overall 3 / 3mil (H/H OZ base copper)

    Outer layer: Part 2.5/2.5mil, overall 3 / 3mil(H/H OZ base copper)

    Min Hole Size0.15mm-0.3mm
    Solder MaskGreen, Red, Yellow, Blue, White, Black, Purple, Matte Black, Matte green
    SilkscreenWhite, Black,Yellow,Blue
    Surface FinishImmersion gold,OSP,Hard gold,Immersion Silver
    Finished Copper0.5-13oz
    Build time5-10 days

    Lead time

    2-3 days

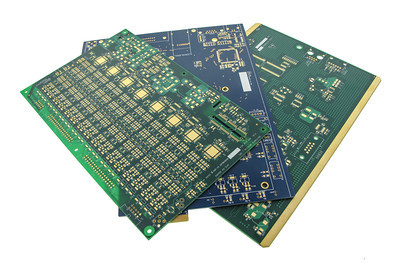

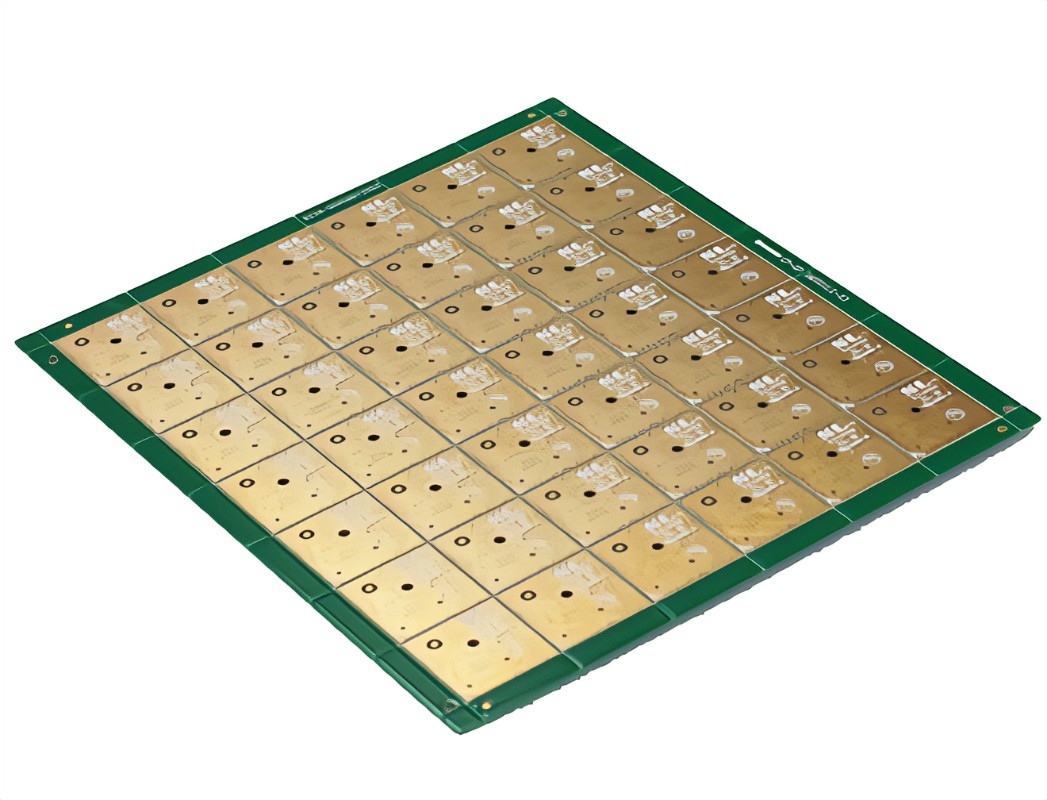

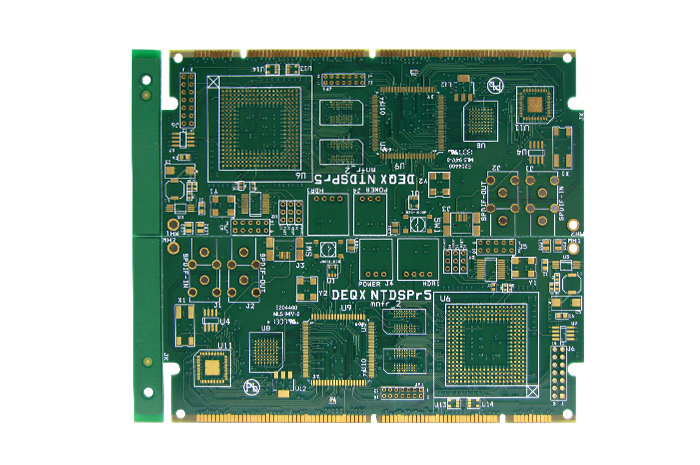

SAMPLES OF HDI PCBs
